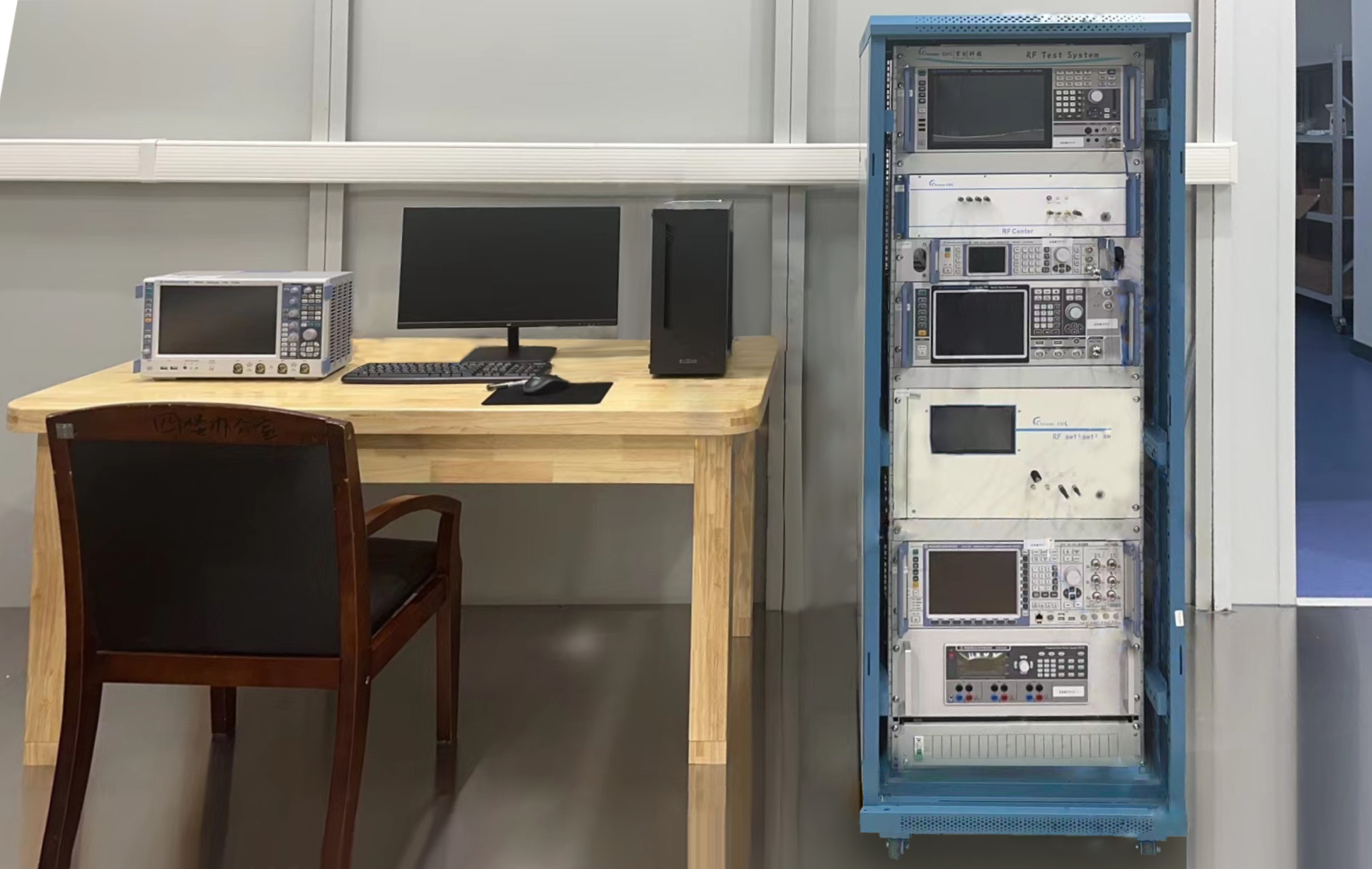

2/3/4/5GRF系統

一.系統能能力


2345G測試系統


軟件平臺

區域認證

標準

測試內容

2345G?RF?Tester?V1.01

歐盟CE

EN301511

GSM

EN301908-1/301908-2

WCDMA

ETSI?EN?301908-13(3GPP?TS?36.521-1)

LTE<E?CA

EN301908-25(3GPP?TS?38.521-1)

NR?SA&NR?CA

EN301908-25(3GPP?TS?38.521-3)

NR?NSA

美國FCC

FCC?Part22/24

GSM

FCC?Part22/24/27

WCDMA

FCC?Part22/24/27

LTE<E?CA

FCC?Part?24?Subpart?E

NR?SA&NR?NSA&NR?CA

中國SRRC

YD/T?1215-2006

GSM

YD/T?1548.1-2009/3GPP?TS?34.121-1

WCDMA

YD/T?2576.2-2013/YD/T?2578.2-2013

LTE<E?CA

GB/T?12572-2008(3GPP?TS?38.521-1)

NR?SA&NR?CA

GB/T?12572-2008(3GPP?TS?38.521-3)

NR?NSA


二.優勢特點及適用范圍：


1.軟件支持多廠商多種儀器型號；并自帶校準功能。

2.自動化切換測試鏈路，減少手動操作；并且支持GSM、WCDMA、LTE、NR認證測試。

3.一鍵自動化測試和報告生成、客戶可自行設計報告，并支持Excel、PDF、Word等多種報告格式。

4.軟件測試項開放可編輯：可自行根據規則配置自己所腳本；支持數據庫及數據分析。
5.系統擴展性強，支持客戶定制化需求。


三.系統連接示意圖：

2/3/4/5GRF系統


四.機柜前部布局圖


2/3/4/5GRF系統


五.機柜后部布局圖


2/3/4/5GRF系統


六.標準


1.CE標準——GSM


?EN30151

測試項

GSM

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）Transmitter-Frequency?error?and?phase?error

√

√




√

2）Transmitter-Frequency?error?under?multipath?and?interference?conditions

√

√




√

3）Transmitter?output?power?and?burst?timing

√

√




√

4）Transmitter-Output?RF?spectrum

√

√




√

5）Conducted?spurious?emissions-MS?allocated?a?channel

√

√



√

√

6）Conducted?spurious?emissions-MS?in?idle?mode

√

√



√

√

7）Receiver?Blocking?and?spurious?response-speech?channels

√

√

√



√

8）Receiver?Adjacent?Channel?Selectivity(ACS)

√

√


√


√

9）Receiver?Intermodulation?Characteristics

√

√

√

√


√

10）Minimum?Input?Level

√

√




√

11）Receiver?sensitivity

√

√




√


2.CE標準(WCDMA)


EN301908-1/EN301908-2

測試項

WCDMA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）Transmitter?maximum?output?power

√

√




√

2）Transmitter?spectrum?emission?mask

√

√





3）Transmitter?spurious?emissions

√

√



√

√

4）Receiver?spurious?emissions

√

√



√

√

5）Transmitter?minimum?output?power

√

√




√

6）Adjacent?Channel?Selectivity(ACS)

√

√


√


√

7）Receiver?spurious?response

√

√

√



√

8）Receiver?intermodulation?characteristics

√

√

√

√


√

9）Receiver?blocking?characteristics(In-band)

√

√


√


√

10）Receiver?blocking?characteristics(Out-band)

√

√

√



√

11）Receiver?blocking?characteristics(Narrow-band)

√

√

√



√

12）Out-of-synchronization?handling?of?output?power

√

√




√

13）Transmitter?Adjacent?Channel?Leakage?power?Ratio(ACLR)

√

√




√

14）Receiver?Reference?Sensitivity?level

√

√




√


3.CE標準(LTE)


EN301908-13

測試項

LTE

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）Transmitter?Maximum?Output?Power

√

√




√

2）Transmitter?Minimum?Output?Power

√

√




√

3）Transmitter?Spectrum?Emission?Mask

√

√




√

4）Transmitter?Adjacent?Channel?Leakage?Power?Ratio

√

√




√

5）Transmitter?Spurious?Emissions

√

√



√

√

6）Occupied?Channel?Bandwidth

√

√




√

7）Transmitter?unwanted?emission?in?the?OOB?domain

√

√



√

√

8）Transmitter?unwanted?emission?in?the?spurious?domain

√

√



√

√

9）Receiver?spurious?emissions

√

√



√

√

10）Receiver?Adjacent?Channel?Selectivity(ACS)

√

√


√


√

11）Blocking?Characteristics(In-Band)

√

√


√


√

12）Blocking?Characteristics(Out-Of-Band)

√

√

√



√

13）Blocking?Characteristics(Narrow-Band)

√

√

√



√

14）Receiver?Intermodulation?Characteristics

√

√

√

√


√

15）Receiver?Spurious?Response

√

√

√



√

16）Receiver?sensitivity?level

√

√




√

17）Minimum?Input?Level

√

√




√


4.CE標準(LTE CA)


ETSI?EN?301908-13(3GPP?TS?36.521-1)

測試項目

Intra-Band?

Contiguous?

DL?CA?and?UL?CA

Intra-Band

?Contiguous?

DL?CA?without?UL?CA

Intra-Band?Non-Contiguous?

DL?CA?without?UL?CA

Inter-Band??

DL?CA?without?UL?CA

1）Transmitter?Maximum?Output?Power

√




2）Transmitter?Minimum?Output?Power

√




3）Transmitter?Spectrum?Emission?Mask

√




4）Transmitter?Adjacent?Channel?Leakage?Power?Ratio

√




5）Transmitter?Spurious?Emissions

√




6）Occupied?Channel?Bandwidth

√




7）Transmitter?unwanted?emission?in?the?OOB?domain

√




8）Transmitter?unwanted?emission?in?the?spurious?domain

√




9）Receiver?spurious?emissions

√

√

√

√

10）Receiver?Adjacent?Channel?Selectivity(ACS)

√

√

√

√

11）Blocking?Characteristics(In-Band)

√

√

√

√

12）Blocking?Characteristics(Out-Of-Band)

√

√

√

√

13）Blocking?Characteristics(Narrow-Band)

√

√

√

√

14）Receiver?Intermodulation?Characteristics

√

√

√

√

15）Receiver?Spurious?Response

√

√

√

√

16）Receiver?sensitivity?level

√

√

√

√

17）Minimum?Input?Level

√

√

√

√


5.CE標準(NR SA)


EN301908-25(3GPP?TS?38.521-1)

測試項

NR?SA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）UE?maximum?output?power

√

√




√

2）Minimum?output?power

√

√




√

3）Spectrum?Emission?Mask

√

√




√

4）Adjacent?channel?leakage?ratio

√

√




√

5）General?spurious?emissions

√

√



√

√

6）Tramsmit?intermodulation

√

√



√

√

7）Spurious?emission?for?UE?co-existence

√

√



√

√

8）Spurious?emissions

√

√



√

√

9）Adjacent?channel?selectivity

√

√


√


√

10）InBand?Blocking

√

√


√


√

11）Out-of-band?blocking

√

√

√



√

12）Narrow?band?blocking

√

√

√



√

13）Intermodulation?characteristics

√

√

√

√


√

14）Spurious?response

√

√

√



√

15）Reference?sensitivity

√

√




√

16）Maximum?input?level

√

√




√


6.CE標準(NR NSA)


EN301908-25(3GPP?TS?38.521-3)

測試項

NR?NSA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）UE?maximum?output?power

√

√




√

2）Minimum?output?power

√

√




√

3）Spectrum?Emission?Mask

√

√




√

4）Adjacent?channel?leakage?ratio

√

√




√

5）General?spurious?emissions

√

√



√

√

6）Tramsmit?intermodulation

√

√



√

√

7）Spurious?emission?for?UE?co-existence

√

√



√

√

8）Spurious?emissions

√

√



√

√

9）Adjacent?channel?selectivity

√

√


√


√

10）InBand?Blocking

√

√


√


√

11）Out-of-band?blocking

√

√

√



√

12）Narrow?band?blocking

√

√

√



√

13）Intermodulation?characteristics

√

√

√

√


√

14）Spurious?response

√

√

√



√

15）Reference?sensitivity

√

√




√

16）Maximum?input?level

√

√




√


7.CE標準(NR CA)


EN301908-25(3GPP?TS?38.521-1)

測試項

Intra-Band

Inter-Band

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）UE?maximum?output?power


√

√




√

2）Minimum?output?power


√

√




√

3）Spectrum?Emission?Mask


√

√




√

4）Adjacent?channel?leakage?ratio


√

√




√

5）General?spurious?emissions


√

√



√

√

6）Tramsmit?intermodulation


√

√



√

√

7）Spurious?emission?for?UE?co-existence


√

√



√

√

8）Spurious?emissions

√

√

√



√

√

9）Adjacent?channel?selectivity

√

√

√


√


√

10）InBand?Blocking

√(FFS)


√


√


√

11）Out-of-band?blocking

√(FFS)


√

√



√

12）Narrow?band?blocking

√(FFS)


√

√



√

13）Spurious?response

√(FFS)


√

√



√

14）Reference?sensitivity

√


√




√

15）Maximum?input?level

√(FFS)

√(FFS)

√




√


8.FCC標準(GSM)


FCC?Part22/24

測試項

GSM

射頻開關

頻譜儀

綜測儀

1）Conducted?Output?Power?and?ERP/EIRP

√

√


√

2）Peak-Average?Ratio

√

√

√

√

3）26dB?Bandwidth

√

√

√

√

4）99%?Occupied?Bandwidth

√

√

√

√

5）Conducted?Band?Edge

√

√

√

√

6）Conducted?Spurious?Emissions

√

√

√

√

7）Frequency?Stability

√

√


√


9.FCC標準(WCDMA)


FCC?Part22/24/27

測試項

WCDMA

射頻開關

頻譜儀

綜測儀

1）Conducted?Output?Power?and?ERP/EIRP

√

√


√

2）Peak-Average?Ratio

√

√

√

√

3）26dB?Bandwidth

√

√

√

√

4）Occupied?Bandwidth

√

√

√

√

5）Band?Edge?Emissions?at?Antenna?Terminal

√

√

√

√

6）Extended?Band?Edge?Emissions?at?Antenna?Terminal

√

√

√

√

7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal

√

√

√

√

8）Frequency?Stability

√

√


√


10.FCC標準(LTE)

FCC?Part22/24/27

測試項

LTE

射頻開關

頻譜儀

綜測儀

1）Radiated?Power(ERP/EIRP)

√

√


√

2）Peak-Average?Ratio

√

√

√

√

3）26dB?Bandwidth

√

√

√

√

4）Occupied?Bandwidth

√

√

√

√

5）Band?Edge?Emissions?at?Antenna?Terminal

√

√

√

√

6）Extended?Band?Edge?Emissions?at?Antenna?Terminal

√

√

√

√

7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal

√

√

√

√

8）Frequency?Stability

√

√


√


11.FCC標準(LTE CA)


FCC?Part22/24/27

測試項

IntraBand?Contiguous?DL?CA?and?UL?CA

IntraBand?Contiguous?DL?CA?without?UL?CA

InterBand??DL?CA?without?UL?CA

Intra-Band?NonContiguous?DL?CA?without?UL?CA

1）Radiated?Power(ERP/EIRP)

√




2）Peak-Average?Ratio

√




3）26dB?Bandwidth

√




4）Occupied?Bandwidth

√




5）Band?Edge?Emissions?at?Antenna?Terminal

√




6）Extended?Band?Edge?Emissions?at?Antenna?Terminal

√




7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal

√




8）Frequency?Stability

√





12.FCC標準(NR SA)


FCC?Part?24?Subpart?E

測試項

NR?SA

射頻開關

頻譜儀

綜測儀

1）Power

√

√


√

2）PeakToAverage?Ratio

√

√

√

√

3）Occupied?Bandwidth

√

√


√

4）Band?Edge

√

√

√

√

5）OutOfBand?Emissions

√

√

√

√

6）Frequency?Stability

√

√


√


13.FCC標準(NR NSA)


FCC?Part?24?Subpart?E

測試項

NR?NSA

射頻開關

頻譜儀

綜測儀

1）Power

√

√


√

2）PeakToAverage?Ratio

√

√

√

√

3）Occupied?Bandwidth

√

√


√

4）Band?Edge

√

√

√

√

5）OutOfBand?Emissions

√

√

√

√

6）Frequency?Stability

√

√


√


14.FCC標準(NR CA)


FCC?Part?24?Subpart?E

測試項

NR?CA

射頻開關

頻譜儀

綜測儀

1）Power

√

√


√

2）PeakToAverage?Ratio

√

√

√

√

3）Occupied?Bandwidth

√

√


√

4）Band?Edge

√

√

√

√

5）OutOfBand?Emissions

√

√

√

√

6）Frequency?Stability

√

√


√


15.SRRC標準——GSM


YD/T?1215-2006

測試項

GSM

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）頻率相位誤差

√

√




√

2）發射機輸出功率

√

√




√

3）發射機功率控制

√

√




√

4）突發時間功率關系

√

√




√

5）發射調制譜

√

√




√

6）發射開關譜

√

√




√

7）傳導發射雜散

√

√



√

√

8）參考靈敏度

√

√




√


16.SRRC標準(WCDMA)


YD/T?1548.1-2009/3GPP?TS?34.121-1

測試項

WCDMA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）最大發射功率

√

√




√

2）矢量幅度誤差

√

√




√

3）峰值碼域誤差

√

√




√

4）頻率相位誤差

√

√




√

5）鄰道泄漏功率比

√

√




√

6）發射模板

√

√




√

7）最小輸出功率

√

√




√

8）上行閉環功率控制

√

√




√

9）上行開環功率控制

√

√




√

10）發射開關時間模板

√

√




√

11）發射機互調

√

√

√

√


√

12）發射雜散

√

√



√

√

13）輸出功率的失步處理(連續發射)

√

√




√

14）發射關功率

√

√




√

15）占用帶寬

√

√




√

16）輸出功率的失步處理(不連續發射)

√

√




√

17）相位非連續性

√

√




√

18）參考靈敏度電平

√

√




√

19）最大輸入電平

√

√




√

20）鄰道選擇性

√

√


√


√

21）帶內阻塞

√

√


√


√

22）帶外阻塞

√

√

√



√

23）窄帶阻塞

√

√

√



√

24）雜散響應

√

√

√



√

25）接收機互調

√

√

√

√


√

26）接收雜散

√

√



√

√


17.SRRC標準(LTE)

YD/T?2576.2-2013/YD/T?2578.2-2013

測試項

WCDMA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）最大發射功率

√

√




√

2）最大發射功率回退

√

√




√

3）額外最大發射功率回退

√

√




√

4）配置UE發射功率

√

√




√

5）最小發射功率

√

√




√

6）矢量幅度誤差

√

√




√

7）PUSCH跳變周期矢量幅度誤差

√

√




√

8）頻率相位誤差

√

√




√

9）占用帶寬

√

√




√

10）鄰道泄漏功率比

√

√




√

11）發射模板

√

√




√

12）額外發射模板

√

√




√

13）絕對功率控制容限

√

√




√

14）相對功率控制容限

√

√




√

15）總功率控制容限

√

√




√

16）載波泄漏

√

√




√

17）帶內雜散

√

√




√

18）EVM均衡器頻譜平坦度

√

√




√

19）發射開關時間模板

√

√




√

20）PRACH時間模板

√

√




√

21）SRS時間模板

√

√




√

22）發射機互調

√

√




√

23）發射雜散

√

√



√

√

24）額外發射雜散

√

√



√

√

25）發射關功率

√

√




√

26）UE共存雜散輻射帶

√

√



√

√


18.SRRC標準(LTE CA)


YD/T?2576.2-2013/YD/T?2578.2-2013

測試項

WCDMA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）最大發射功率

√

√




√

2）最大發射功率回退

√

√




√

3）額外最大發射功率回退

√

√




√

4）配置UE發射功率

√

√




√

5）最小發射功率

√

√




√

6）矢量幅度誤差

√

√




√

7）PUSCH跳變周期矢量幅度誤差

√

√




√

8）頻率相位誤差

√

√




√

9）占用帶寬

√

√




√

10）鄰道泄漏功率比

√

√




√

11）發射模板

√

√




√

12）額外發射模板

√

√




√

13）絕對功率控制容限

√

√




√

14）相對功率控制容限

√

√




√

15）總功率控制容限

√

√




√

16）載波泄漏

√

√




√

17）帶內雜散

√

√




√

18）EVM均衡器頻譜平坦度

√

√




√

19）發射開關時間模板

√

√




√

20）PRACH時間模板

√

√




√

21）SRS時間模板

√

√




√

22）發射機互調

√

√




√

23）發射雜散

√

√



√

√

24）額外發射雜散

√

√



√

√

25）發射關功率

√

√




√

26）UE共存雜散輻射帶

√

√



√

√


19.SRRC標準(NR SA)


GB/T?12572-2008(3GPP?TS?38.521-1)

測試項

NR?SA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）最大發射功率

√

√




√

2）最大發射功率回退

√

√




√

3）額外最大發射功率回退

√

√




√

4）配置UE發射功率

√

√




√

5）最小發射功率

√

√




√

6）矢量幅度誤差

√

√




√

7）頻率相位誤差

√

√




√

8）占用帶寬

√

√




√

9）鄰道泄漏功率比

√

√




√

10）發射模板

√

√




√

11）額外發射模板

√

√




√

12）絕對功率控制容限

√

√




√

13）相對功率控制容限

√

√




√

14）總功率控制容限

√

√




√

15）載波泄漏

√

√




√

16）帶內雜散

√

√




√

17）EVM均衡器頻譜平坦度

√

√




√

18）發射開關時間模板

√

√




√

19）PRACH時間模板

√

√




√

20）SRS時間模板

√

√




√

21）發射機互調

√

√




√

22）發射雜散

√

√



√

√

23）額外發射雜散

√

√



√

√

24）發射關功率

√

√




√

25）UE共存雜散輻射帶

√

√



√

√


20.SRRC標準(NR NSA)


GB/T?12572-2008(3GPP?TS?38.521-3)

測試項

NR?NSA

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）最大發射功率

√

√




√

2）最大發射功率回退

√

√




√

3）額外最大發射功率回退

√

√




√

4）配置UE發射功率

√

√




√

5）最小發射功率

√

√




√

6）矢量幅度誤差

√

√




√

7）頻率相位誤差

√

√




√

8）占用帶寬

√

√




√

9）鄰道泄漏功率比

√

√




√

10）發射模板

√

√




√

11）額外發射模板

√

√




√

12）絕對功率控制容限

√

√




√

13）相對功率控制容限

√

√




√

14）總功率控制容限

√

√




√

15）載波泄漏

√

√




√

16）帶內雜散

√

√




√

17）EVM均衡器頻譜平坦度

√

√




√

18）發射開關時間模板

√

√




√

19）PRACH時間模板

√

√




√

20）SRS時間模板

√

√




√

21）發射機互調

√

√




√

22）發射雜散

√

√



√

√

23）額外發射雜散

√

√



√

√

24）發射關功率

√

√




√

25）UE共存雜散輻射帶

√

√



√

√


21.SRRC標準(NR CA)

GB/T?12572-2008(3GPP?TS?38.521-1)

測試項

Intra-Band

Inter-Band

射頻開關

模擬源

矢量源

頻譜儀

綜測儀

1）最大發射功率


√

√




√

2）最大發射功率回退

√(FFS)

√(FFS)

√




√

3）額外最大發射功率回退

√(FFS)

√(FFS)

√




√

4）配置UE發射功率

√(FFS)

√

√




√

5）最小發射功率


√

√




√

6）矢量幅度誤差


√

√




√

7）頻率相位誤差


√

√




√

8）占用帶寬


√

√




√

9）鄰道泄漏功率比


√

√




√

10）發射模板


√

√




√

11）載波泄漏


√

√




√

12）帶內雜散


√

√




√

13）發射開關時間模板


√

√




√

14）發射機互調


√

√




√

15）發射雜散


√

√



√

√

16）發射關功率


√

√




√

17）UE共存雜散輻射帶


√

√



√

√


七、軟件介紹


1. 軟件主界面

2345G測試軟件主界面


2.、設備列表

2345G測試軟件設備列表


3.校準


2345G測試軟件介紹


4.工具——射頻開關

射頻開關


5.測試產品——系數

測試產品系數


6.測試產品——報告


2345G測試軟件介紹


7.一鍵自動化測試和報告生成、客戶可自行設計報告，并支持ExcelPDF、Word等多種報告格式。


2345G測試軟件介紹

2345G測試軟件介紹


2345G測試軟件介紹


8.測試產品——測試計劃

2345G測試軟件介紹


9.部分測試項


GSM——CGSM——FCGSM——SRR
2345G測試軟件介紹2345G測試軟件介紹2345G測試軟件介紹























10.測試項可編輯



2345G測試軟件介紹


11.Band


2G GSM


2345G測試軟件介紹


3G WCDMA


2345G測試軟件介紹


4G LTE(FDD|TDD)

2345G測試軟件介紹


4G? CA LTE(FDD|TDD)

2345G測試軟件介紹


NR SA

2345G測試軟件介紹


NR NSA

2345G測試軟件介紹


NR CA


2345G測試軟件介紹


12.支持數據庫及數據分析

2345G測試軟件介紹2345G測試軟件介紹


2345G測試軟件介紹


13.備份及全局變量


2345G測試軟件介紹

2345G測試軟件介紹
